Description:

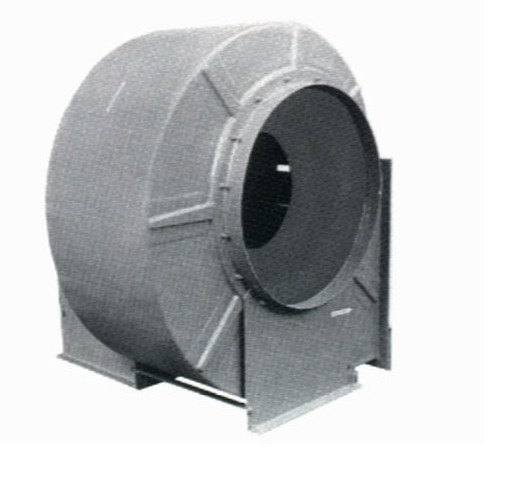

Fiberglass centrifugal Blowers provide a convenient package design Blower with high quality corrosion resistant housing and wheel, constructed of fiberglass reinforced plastic. FRP Blowers are resistant to attack from most chemicals and are ideally suited for application handling corrosive gasses typical in the chemical, pulp and paper, waste water treatment, fertilizer, pharmaceutical, and metal treatment industries.

S

Applications:

	Fume Scrubbers
	Bio-Filters
	Bio-Towers
	Air Stripping Towers
	Acid Scrubbers
	Ammonia Scrubbers
	Plating Scrubbers
	Pump / Lift Station Exhaust
	Hydro Fluoric Acid Exhaust
	Chromic Acid Exhaust
	Carbon Filter Supply
	Sulfuric Acid Exhaust
	Metals Processing Exhaust
	Chlorine Scrubber Exhaust
	Process Gas
	Concentrated Flue Gas
	Sulfur Dioxide
	Hydrogen Sulfide
	Aqua Regia
	Perchloric Acid
	Sodium Hypochlorite

Product Features

and Options:

• All Vinylester Construction.
• Graphite Impregnation.
• Surface Veil.
• Mechanical Shaft Seals.
• Stainless or Hastelloy C-276 Shafting.
• Stanless Structurals and Guards.
• Sound Insulation.
• Stainless Impellers.
• FRP Inlet Boxes.
• FRP Dampers.
• OSFA Approved Guards.
• AMCA Tested and Rated.

• 100,000 HR Bearing Life.
• Direct or Belt Driven.
• Access Doors.
• Drain couplings.
• Flanges.
• FRP Silencers.
• FRP Sound Encloures.
• Special Coatings.
• FRP Transitions.
• Flexible Connectors.
• Isolation / Inertia / Seismic Bases.
• Special Motors.

CONSTRUCTION

FRP Centrifugal Blowers have the housing and wheel constructed from fiberglass reinforced plastic utilizing premium resins for maximum strength and corrosion resistance. The drive and motor base are constructed from heavy gage steel finished with a catalytic epoxy coating for corrosion protection. A Teflon shaft seal around the shaft opening is provided to limit exchange of gasses through the shaft hole (not gas tight). The Blower exterior is finished with medium grey catalytic epoxy coating.

FRP Blowers are available in ARR 1, ARR 9 and ARR 10 configurations. Maximum motor frame sizes that can be accommodated on ARR 9 & 10 Blowers are listed in the dimensional table for each Blower size.

MATERIAL                                                                      Hetron 99P or equivalent resin is used for the housing and Hetron FR992 or equivalent resin is used for the wheel, both of which provide superior corrosion resistance and strength with a Class II fire retardancy and less than 75 flame spread. All air stream surfaces are coated with a thick coating of resin after layup to provide maximum corrosion protection and minimize wicking. Several optional materials and characteristics are available:



SHAFT AND BEARING                                                FRP Blowers are supplied with 304 stainless steel shafts and cast-iron pillow block ball or roller bearings as standard. Shafts of 316 stainless steel are available as an option. The portion of the shaft in the air stream is encapsulated in FRP laminate for protection from corrosive gasses. Special bearing requirements can be provided when specified.

WHEELS                                                                           FRP Blowers utilize a non-overloading backward inclined centrifugal impeller for high efficiency and quiet operation. Imbedded steel hub plate and taper lock bushing are used for attachment to the drive shaft. The bushing and hub plate are encapsulated in FRP laminate for protection from corrosive gasses.
